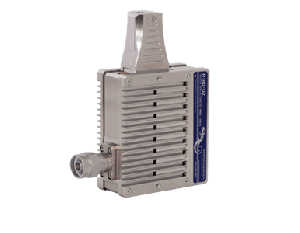

R180
Vector Network Analyzer (cable and antenna analyzer) delivers lab grade
performance in a handheld device. This patented (US Patent 9,291,657)
analyzer can be connected directly to the antenna or other DUT without
the need for a test cable, eliminating measurement uncertainties
inherent to cables. Resulting in highly dependable performance and
calibration stability. The 1-port VNA comes with all the features
engineers have come to expect included standard in our software.
The R180 1-Port VNA is available with an IP54 add-on option:
As defined in
international standard IEC 60529, the Ingress Protection Rating
classifies the degrees of protection provided against the intrusion of
solid objects (including body parts like hands and fingers), dust,
accidental contact, and water in electrical enclosures.
The standard
configuration R180-02 incorporates an N-type male test port connector.
Other connectors are available by special order:
- R180-01 – N-type female
- R180-11 – 3.5mm female
- R180-12 – 3.5mm male
R180 VNA includes an
RF measurement module and R software application which runs on Windows
or Linux operating system on a PC, laptop, tablet, or x86 board computer
connecting to the measurement hardware via USB interface. R software
can be installed on multiple computers that share the use of the
analyzer measurement module. The handheld (R180 cable and antenna
analyzer is powered and operated through USB connection to an external
PC or an external 5V charger. The R180 network analyzer can be used in
the field, in the laboratory, and in production testing. The VNA can be
integrated into production test system via Manufacturing Test plug-in.
VNAs and ACMs are
delivered with factory calibration certificates containing no data. The
add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration
Certificate and Uncertainties is available and needs to be specified at
time of order.
Specifications :
Datasheets
1-Port VNA Data Sheet | Extended Specification Sheet
Applications :
Due to its measurement accuracy, ultra-compact size and elimination of a
test cable, the R180 cable and antenna analyzer (reflectometer) can be
used for antennas and antenna feeders in the field, as well as
laboratory and production testing in a wide variety of industries
including design and production of various IoT hardware components,
materials testing, medical devices, aerospace applications, etc
