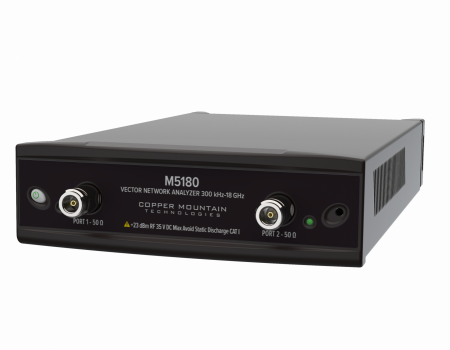

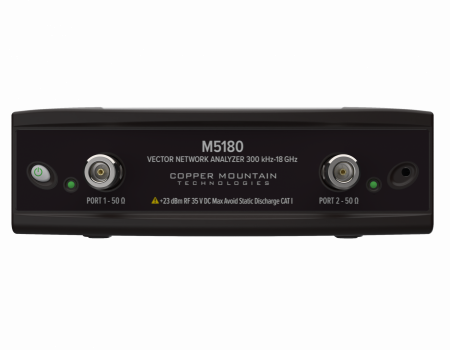

M5180 2-Port 18 GHz Vector Network Analyzer

The M5180 is a 2-port, 18 GHz Vector Network Analyzer that delivers metrology-grade performance in a more economical package than our standard 2-Port models.

The M5180 is a powerful solution for engineers seeking reliable RF measurements for materials measurement or production applications without the price tag of traditional, full-featured lab instruments.

The M5180 includes many of the advanced software features found in other CMT VNAs:

• Linear/logarithmic sweeps with multiple trace formats
• Power sweeps
• Fixture simulation (embedding/de-embedding)
• 16 independent channels with up to 16 traces each
• Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
• Test Automation programming in LabView, Python, MATLAB, .NET, etc.

To keep costs down, some features typically included in CMT software have been excluded from the models in the Value Series line from CMT. For users who do not require features like time domain and gating, this unit offers a reduced cost without sacrificing performance or accuracy.

VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.

The M5180 VNA includes an RF measurement module and S2VNA Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement.
