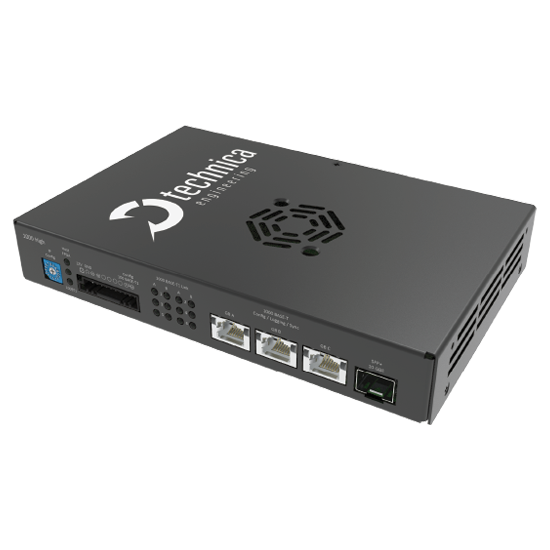

Capture Module 1000 HIGH
The Capture Module (CM) 1000 High from Technica Engineering is an active tap device designed to capture 100/1000Base-T1 traffic of up to 6 point-to-point 100/1000BASE-T1 connections (12 ports in total). The received data is captured and HW timestamped without causing interference on the in-vehicle-network (IVN) and sent out to the data sink (e.g. data logger or PC).

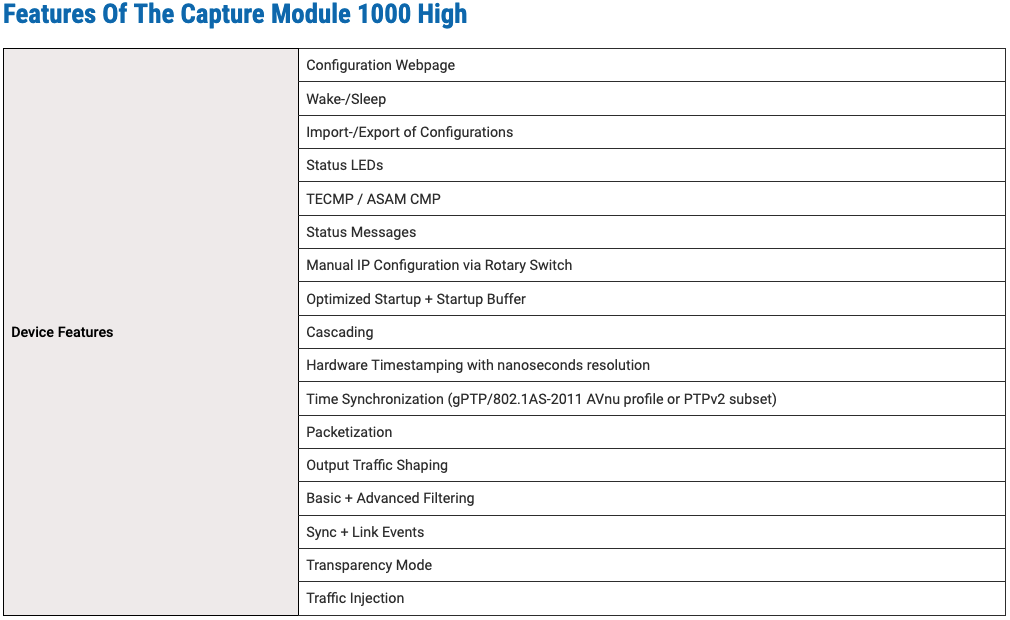

Configuration
The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.

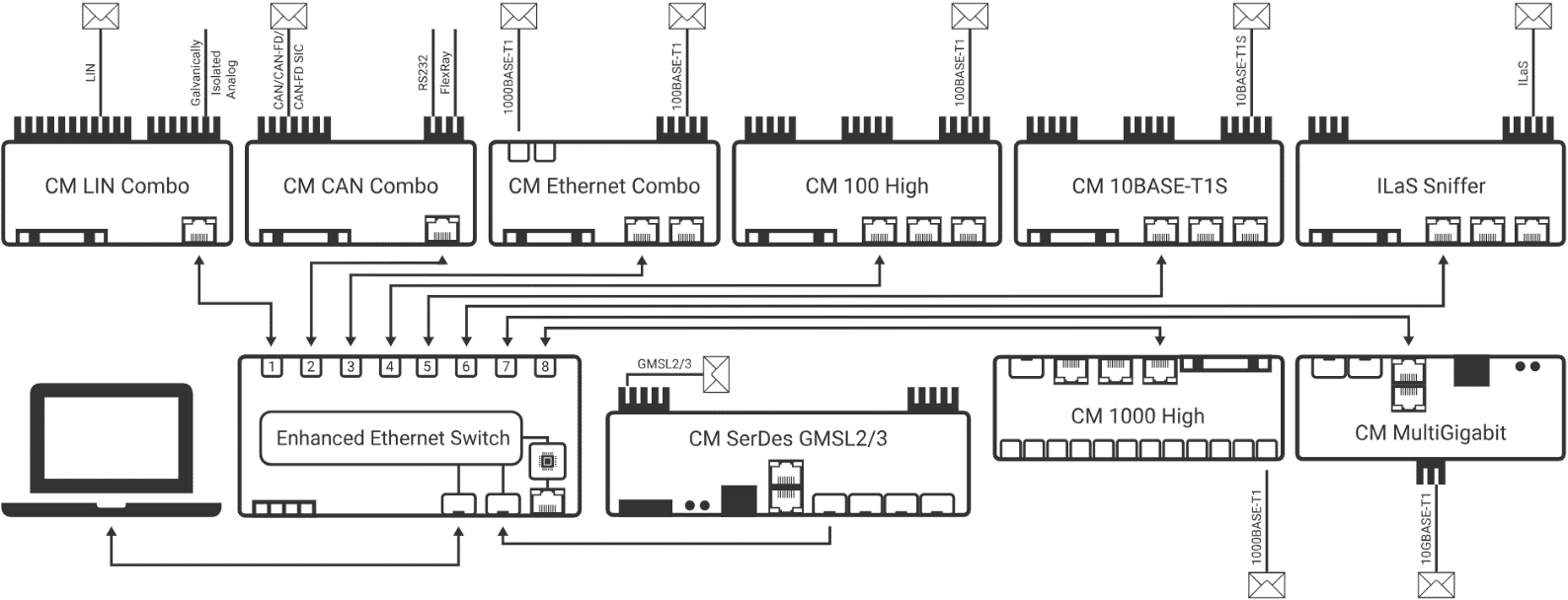

Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. In order to cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.
| Operating temperature | -40°C to 75°C |
| Supply voltage | 6.5 V to 30 V DC (typ. 12 V DC) |
| Power consumption | 25 to 36 Watt |
| IP protection class | IP 20 |
| Housing dimensions | 196 mm (W), 130,4 mm (L), 32,5 mm (H) |
| Weight | 0.8 kg (approx.) |

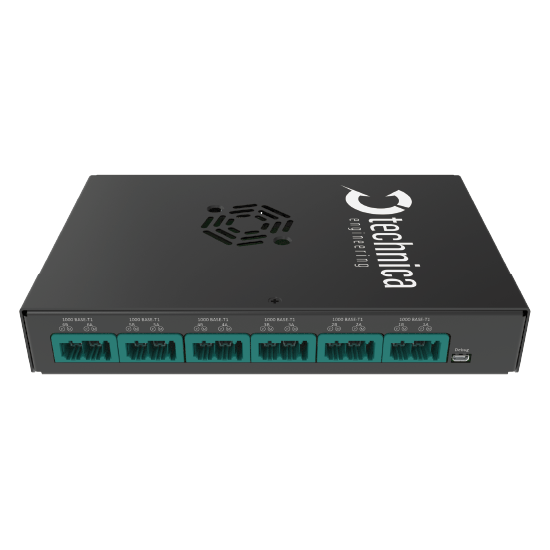

| Interfaces | 12x 100/1000BASE-T1 (MATEnet or H-MTD) 3x 1000BASE-T (RJ-45) for Config, Logging, Sync 1x 10Gbit Ethernet (SFP+) for Logging, Sync 1x 100BASE-T1 (MQS) for Config 2x Wake in/out (MQS) |
| Phy (vehicle-side) | MARVELL 88Q2112-A2 |
