Capture Module CAN Combo

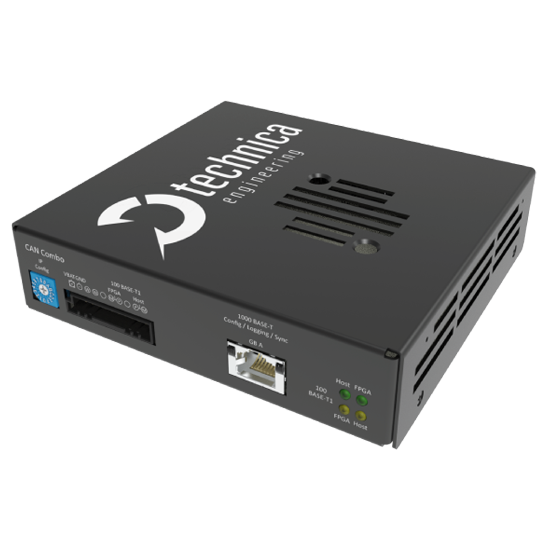

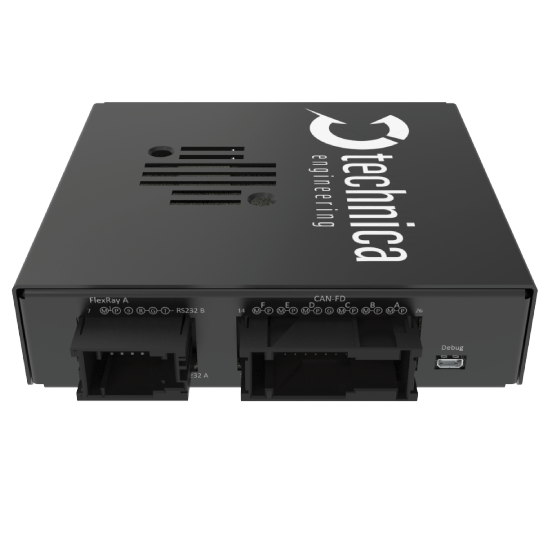

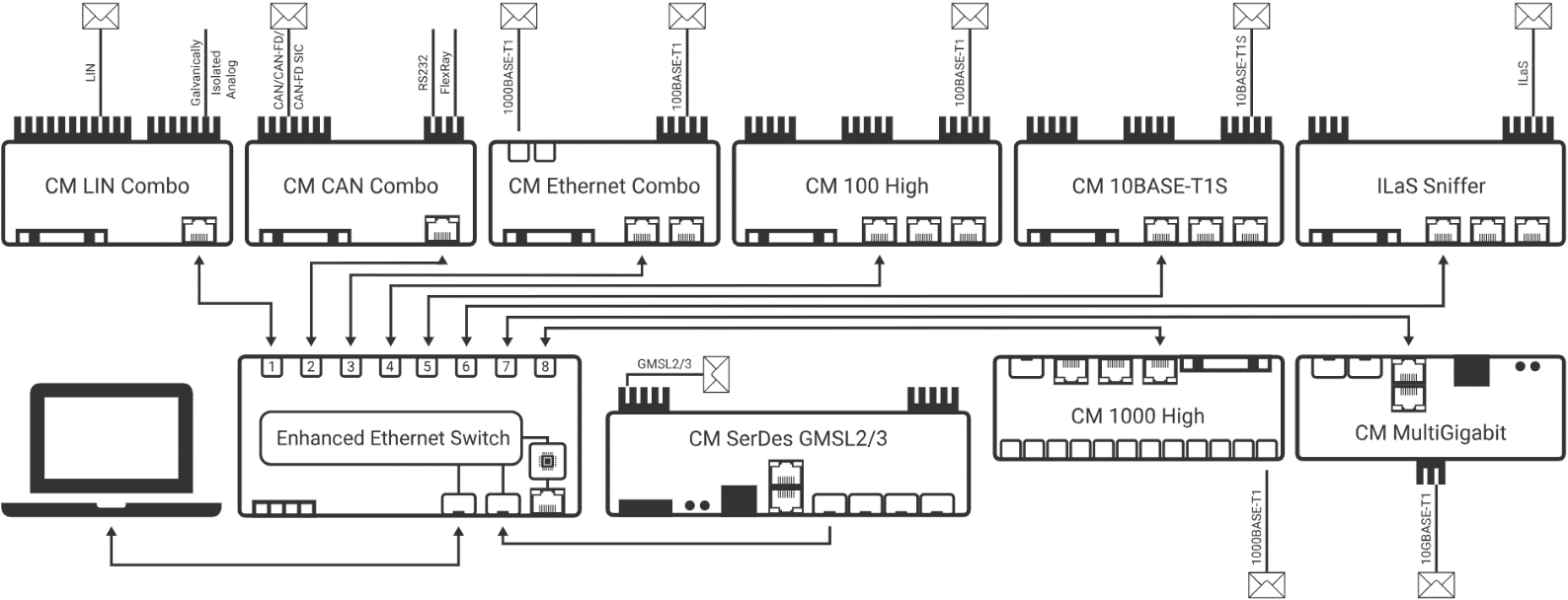

The Capture Module CAN Combo is an active tap device designed to capture CAN (-FD) traffic from up to 6 CAN (-FD) busses, one Flexray bus and two RS-232 or TTL interfaces. The received data is captured and HW timestamped without causing interference on the in-vehicle-network (IVN) and sent out to the data sink (e.g. data logger or PC).

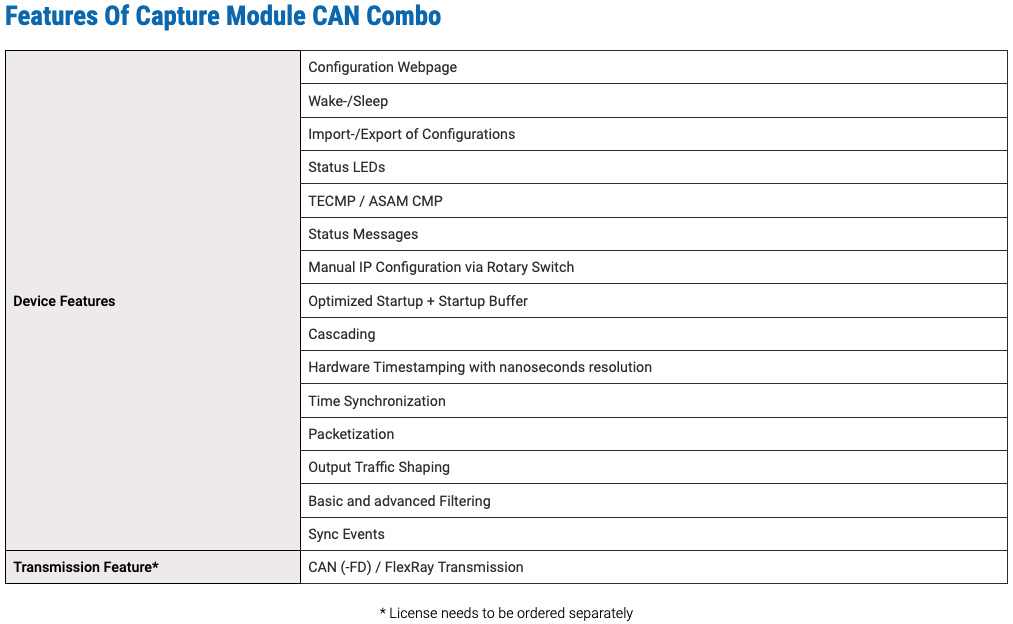

Configuration
The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.
Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. In order to cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.
| Operating temperature | -40 °C to +80 °C |
| Supply voltage | 6.5 V to 24 V DC (typ. 12 V) |
| Power consumption | 4.8 to 7 Watt |
| IP protection class | IP 20 |
| Housing dimensions | 133 x 130 x 33 mm |
| Weight | 0.5 kg (approx.) |
| Interfaces | 6x CAN (-FD) (MQS) 6x CAN (-FD) (MQS) 2x RS-232/TTL (MQS) 1x 1000BASE-T (RJ-45) for Config, Logging, Sync 1x 100BASE-T1 (MQS) for Config, Logging, Sync 1x 100BASE-T1 (MQS) for Config 2x Wake in/out (MQS) |
| Deserializer | TJA1059 |
