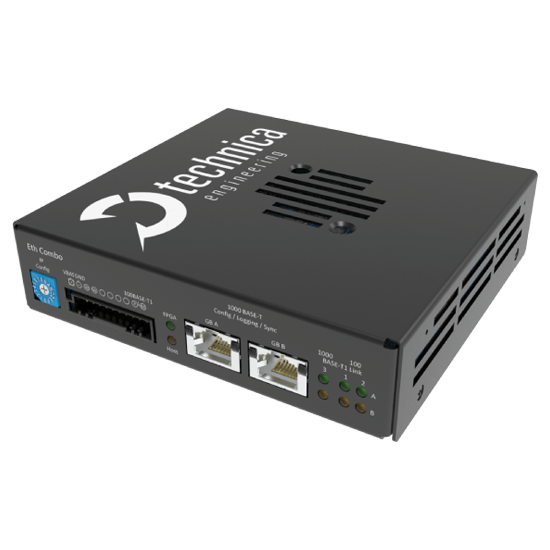

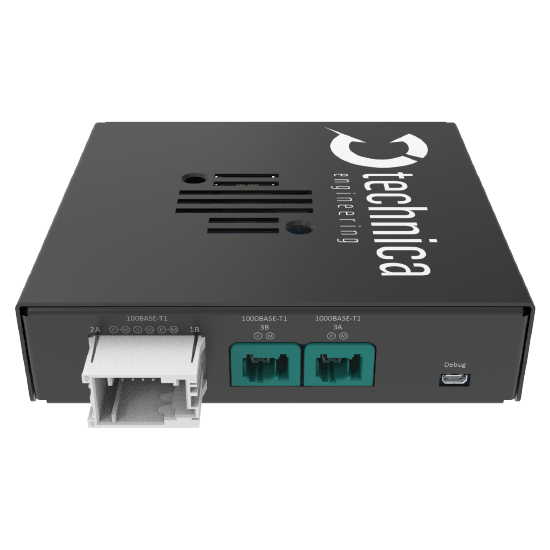

Capture Module Ethernet Combo

The Capture Module Ethernet Combo is an active tap that can be used to capture the traffic from 1 x 1000BASE-T1 line (between two DUTs) and 2 x 100BASE-T1 (between four DUTs) lines correspondingly.

  • 1 × MQS connector for 2 × 100BASE-T1 Automotive Ethernet link lines
  • 2 × MATEnet ports for 1 × 1000BASE-T1 Automotive Ethernet link line
  • 1 × Rotary switch
  • 1 × MQS connector with 1 × Host port for configuration only
  • 2 × RJ-45 ports for 1000BASE-T Standard Ethernet for logging and time synchronization
  • 12 × Status LEDs (4 of them at the RJ-45 ports)
  • Optimized for automotive and automotive-like use-cases
  • High voltage range: 12 to 24 volt DC
  • Power consumption: 6 to 10 Watt
  • Robust galvanized sheet steel with black powder coated housing
  • Size: 137 × 129 × 33 mm

  • 1000BASE-T1 and two 100BASE-T1 Automotive Ethernet link lines
  • Network Time Synchronization supports several standards (ANVU gPTP / 802.1AS, PTPv2) – allowing the user to synchronize multiple Capture Module variants and other devices
  • Source Timestamping with 40 ns resolution
  • High-Speed-Startup (<200ms)
  • Startup Buffer
  • Output Traffic Shaping
  • AVB/TSN capture capable
  • Time-aware injection
  • Rotary switch for manual configuration of the device IP address (Gbit, RJ-45)
  • Extended Power Mode for in-vehicle use
  • Wake-up/Sleep functionality
  • Use of the Technically Enhanced Capture Module Protocol (TECMP), which is royalty-free and provides timestamping, source information, etc. (natively supported in Wireshark (v3.4). GPL C libraries for conversion to PCAPNG available at https://github.com/Technica-Engineering)

  • Single/Double VLANs
  • Port Mirroring
  • Static/Dynamic ARL Table
  • Web server for easy configuration: Master/Slave, HalfOut/FullOut
  • WakeUp-Function over Wake-up Line
  • Power output for attached devices: VBAT max. 1 Ampere in total
  • Possibility to reset to default settings by pushbutton
  • 802.1AS Bridge function
