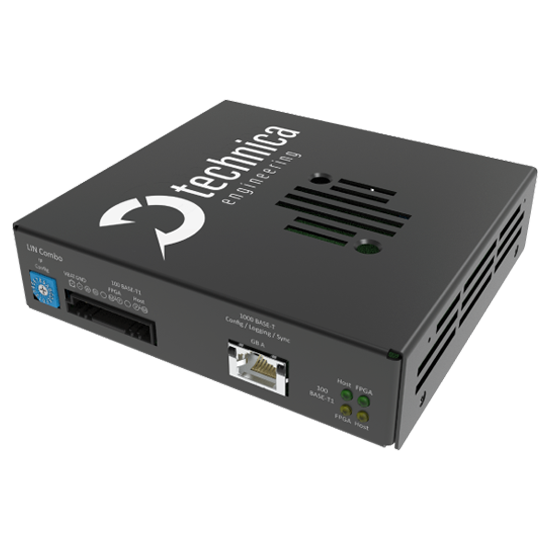

Capture Module LIN Combo
The Capture Module LIN Combo is an active tap device designed to capture LIN traffic from up to 10 LIN busses, analog signals on up to 4 ports and galvanically isolated analog signals on 2 ports. The received data is captured and HW timestamped without causing interference on the in-vehicle-network (IVN) and sent out to the data sink (e.g. data logger or PC).

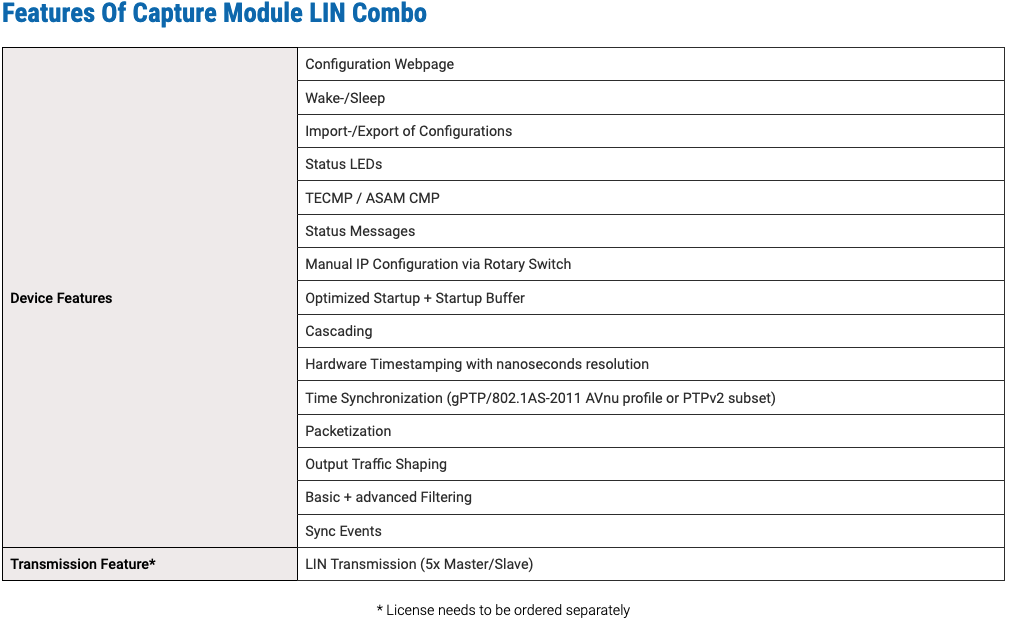

Configuration
The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.

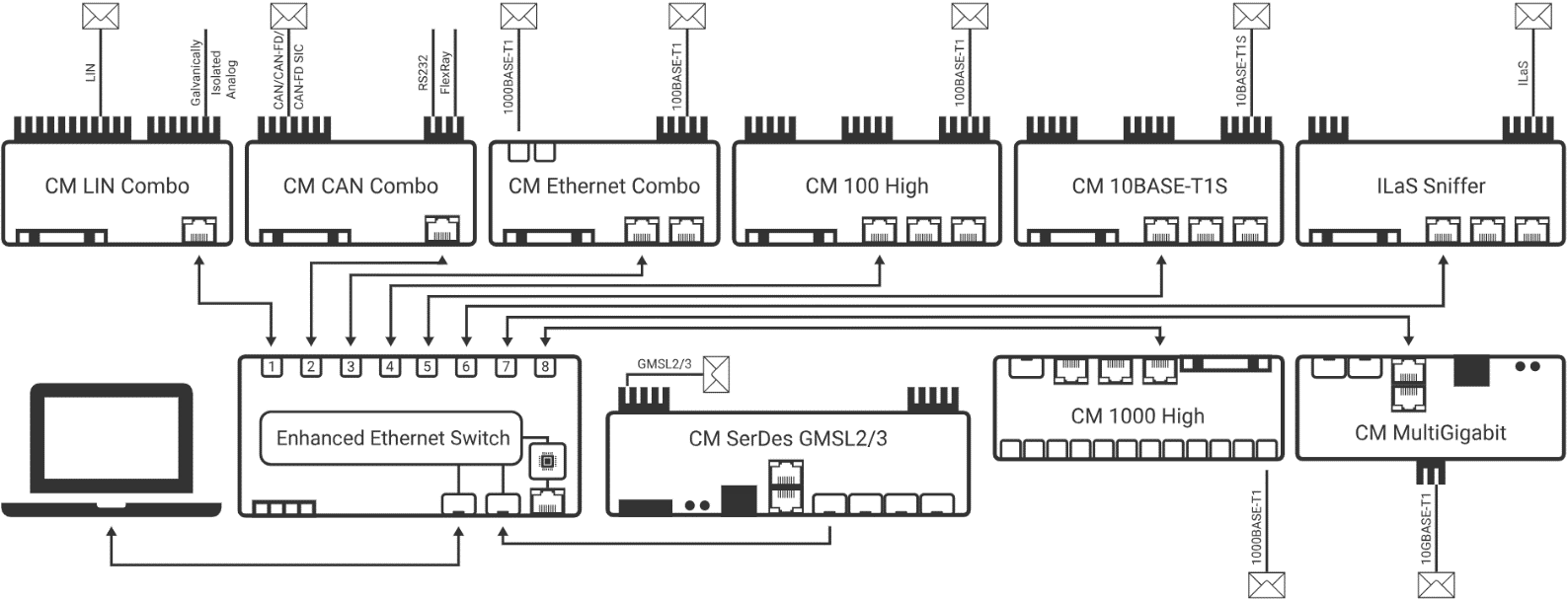

Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. In order to cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.
| Operating temperature | -40 °C to +80 °C |
| Supply voltage | 6.5 V to 24 V DC (typ. 12 V) |
| Power consumption | 4.8 to 6 Watt |
| IP protection class | IP 20 |
| Housing dimensions | 133 x 130 x 33 mm |
| Weight | 0.5 kg (approx.) |
| Interfaces | 10x LIN (MQS) 4x Analog (MQS) for voltage measurement 2x galvanically isolated Analog (MQS) for voltage measurement 1x 1000BASE-T (RJ-45) for Config, Logging, Sync 1x 100BASE-T1 (MQS) for Config, Logging, Sync 1x 100BASE-T1 (MQS) for Config 2x Wake in/out (MQS) |
| Deserializer | TJA1024 & TJA1022 |
