Media Gateway

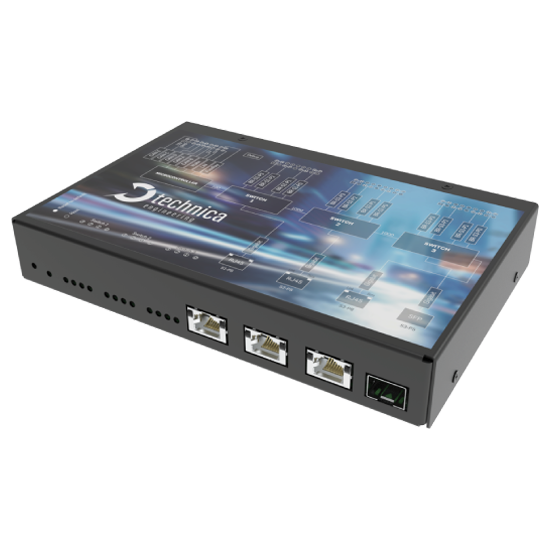

Media Gateway from Technica Engineering is a development tool for testing and analyzing onboard vehicle networks. Media Gateway features 3 x in-built automotive Ethernet switches, which means it can offer many ISO/OSI Layer 2 functions. It is the right fit for subsystem testing stations and can also be installed in a test vehicle without complications.

Enhanced Ethernet Switches of Technica Engineering can be used on the development desk and even in harsh environments. These devices are adapted for continuous operation in Testbenches, which also corresponds temperature range in which they can work and robust casing.


  • 12 Broadcom 100BASE-T1 ports (100 MBit/s full duplex on a single unshielded twisted pair)
  • 3 Gigabit Ethernet ports
  • 1 SFP Gigabit Ethernet port

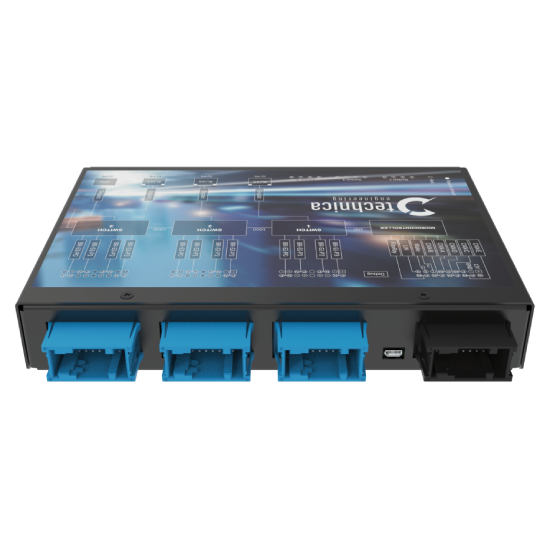

  • Automotive Tyco MQS connectors for 100BASE-T1 and power supply
  • 19 status LEDs
  • Robust, galvanized sheet steel housing
  • Power requirement: 8 to 16 V DC, power consumption: 8 Watt
  • Size: 195 x 143 x 33 mm

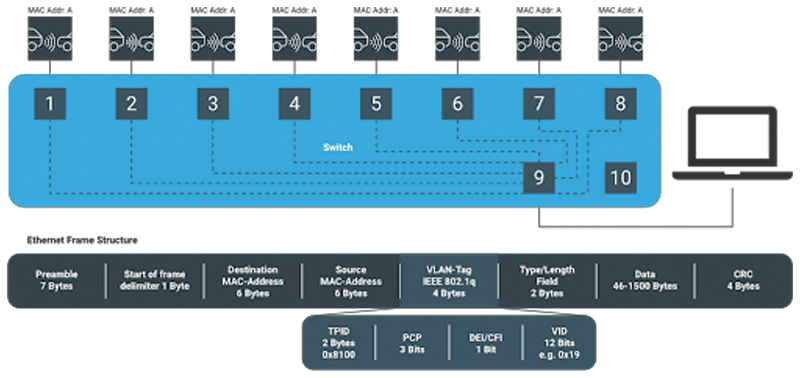

  • Single/Double VLANs
  • Port Mirroring
  • Static/Dynamic ARL Table
  • Web server for easy configuration: Master/Slave, HalfOut/FullOut
  • WakeUp-Function over Wake-up Line
  • Power output for attached devices: VBAT max. 1 Ampere in total
  • Possibility to reset to default settings by pushbutton
  • 802.1AS Bridge function
