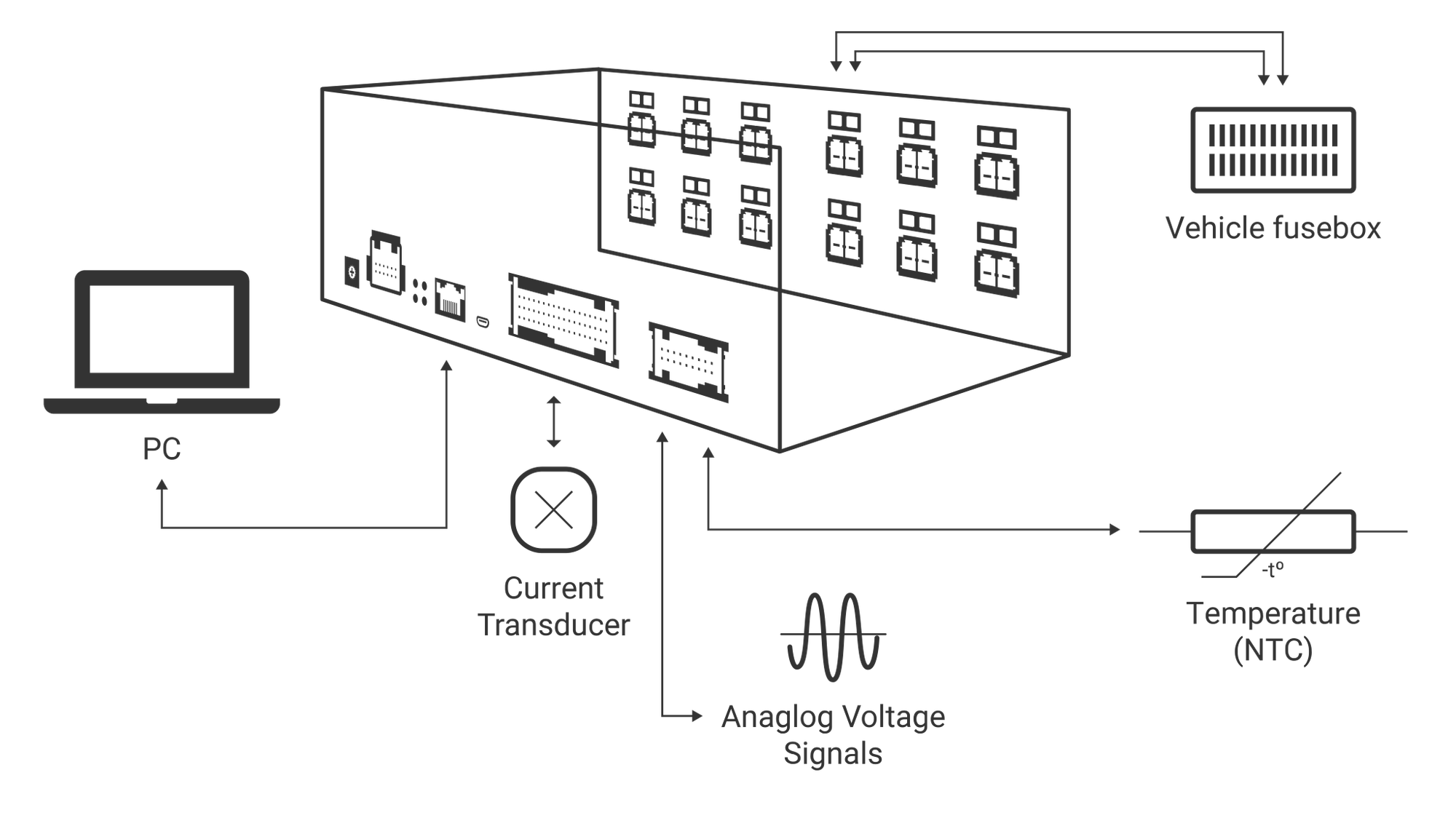

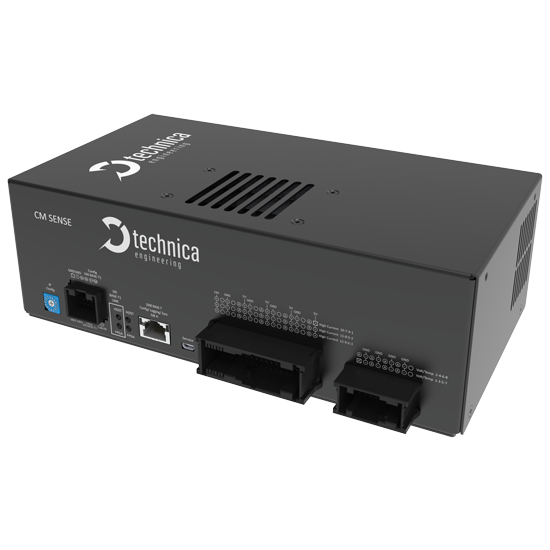

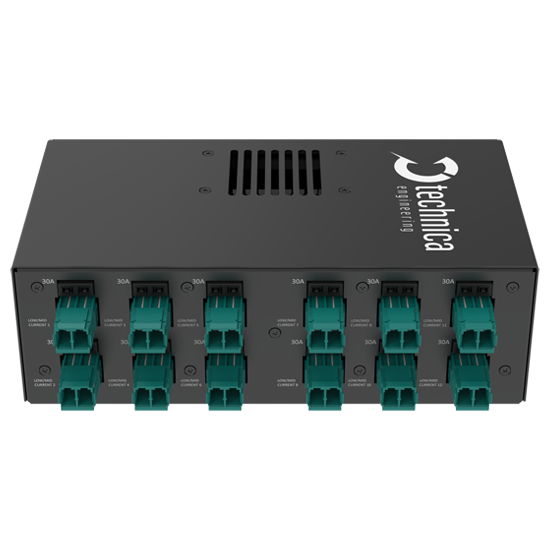

The Capture Module Sense is an analog measurement device designed to measure in- vehicle analog signals, capturing up to 12 low/mid (up to 30A) current channels, 12 configurable high current channels using external transducers and 8 configurable voltage or temperature (using external NTC based sensors) measurement channels. The measured data are HW timestamped and sent out to the data sink (e.g. data logger or PC).
Configuration

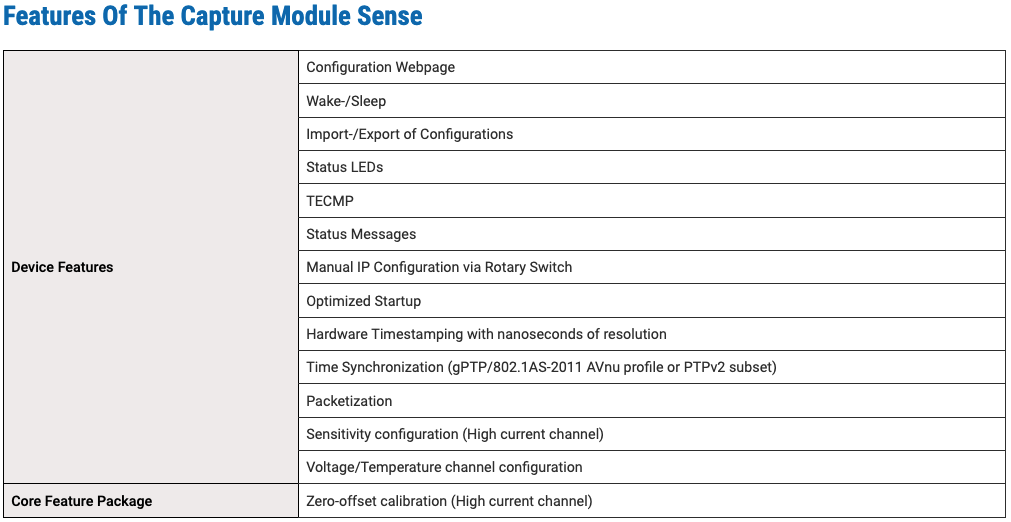

The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.
Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. To cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.
| Operating temperature | -40 °C to +80 °C |
| Supply voltage | 6.5 V to 32 V DC (typ. 12 V) |
| Power consumption | 8 Watt |
| IP protection class | IP 20 |
| Housing dimensions | 240 x 130 x 78 mm |
| Weight | 2kg (approx.) |
| Interfaces | 12x Low/Mid current measurement channels, up to 30A using internal hall effect sensors 12x configurable High current measurement channels, using external transducers 8x configurable Voltage/Temperature measurement channels 1x 1000BASE-T (RJ-45) for Config, Logging, Sync 1x 100BASE-T1 (MQS) for Config, Logging, Sync 1x 100BASE-T1 (MQS) for Config 2x Wake in/out (MQS) |
