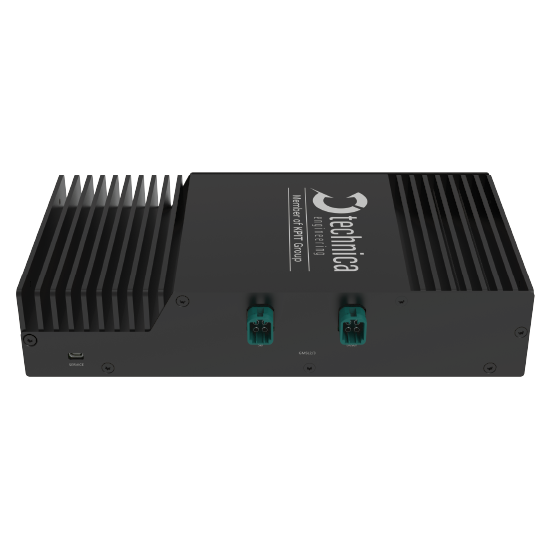

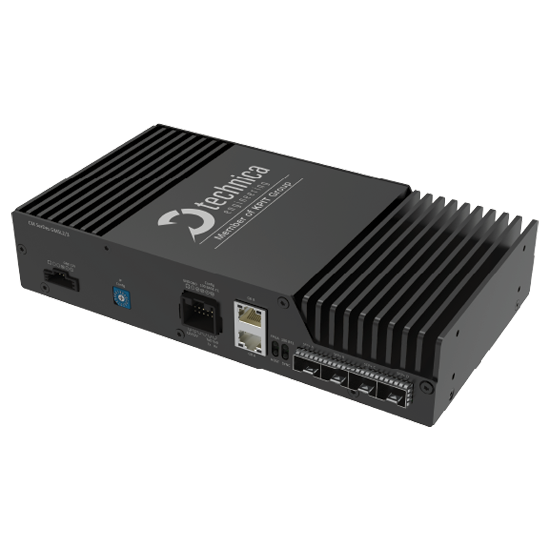

Capture Module SerDes GMSL2/3

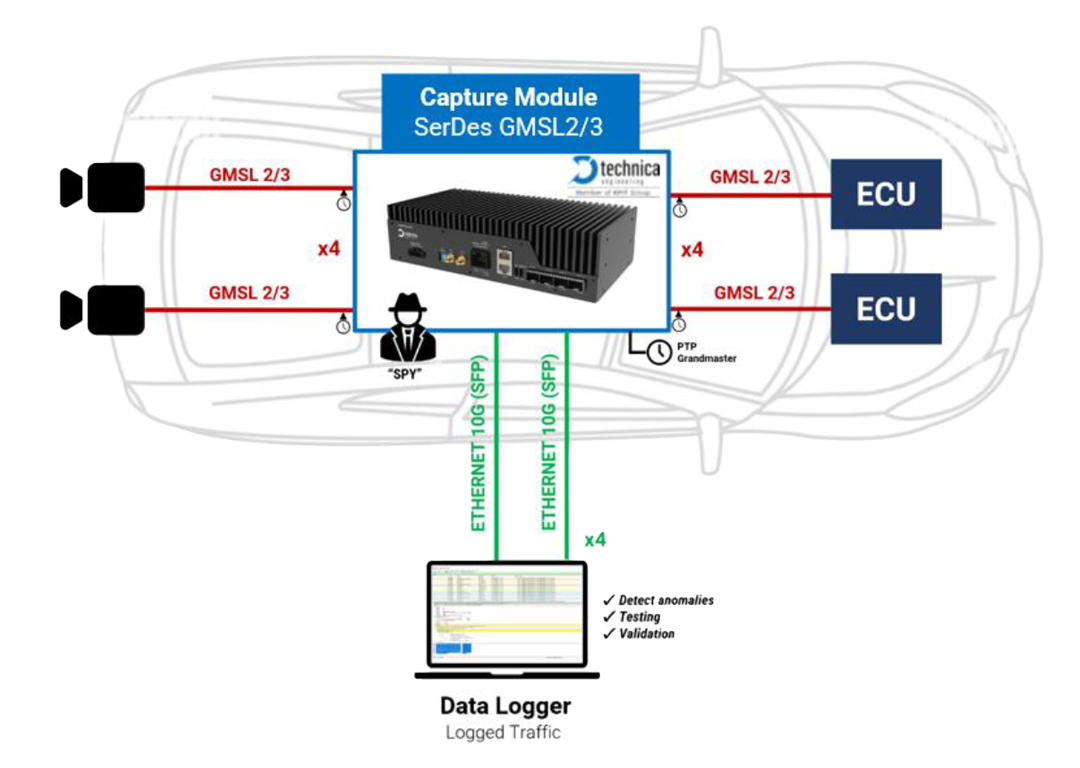

Capture Module SerDes GMSL2/3 The Capture Module SerDes GMSL2/3 from Technica Engineering GmbH is a versatile and powerful device for logging data in automotive applications, such as AD/ADAS. It features 4x GMSL2/3 link lines (8 ports) and 4x SFP+ ports for high-speed and reliable data logging output (up to 10Gbps each).
Configuration

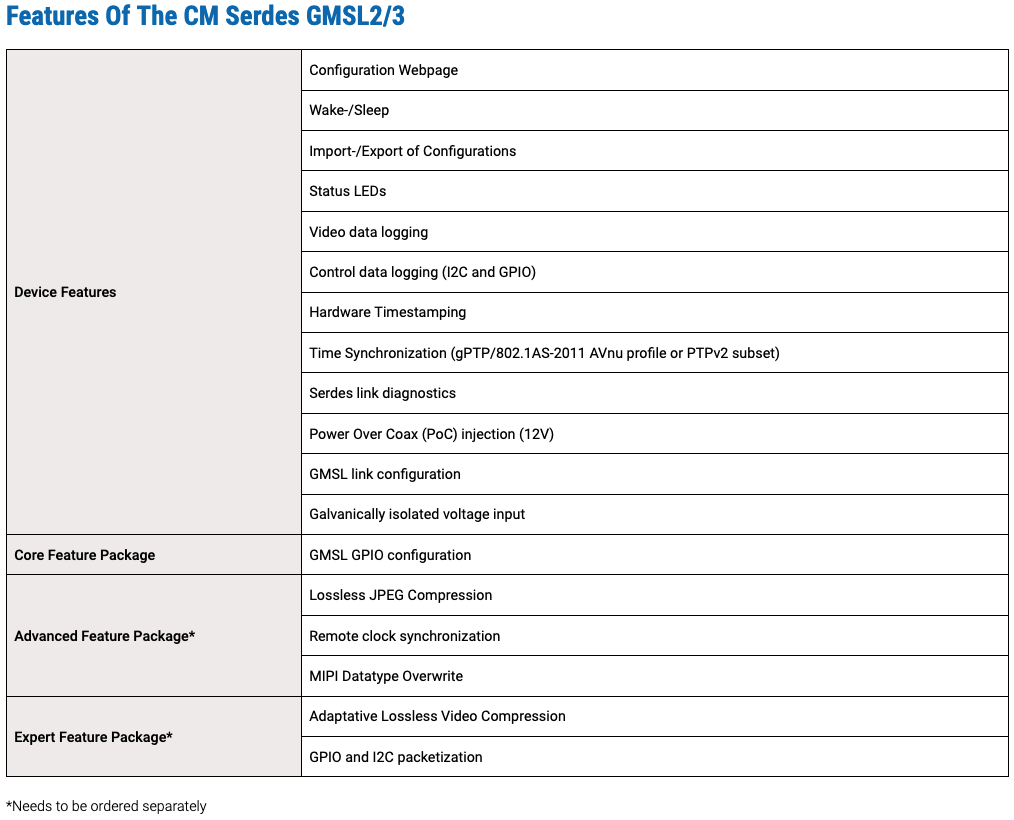

Through an internal configuration website, the user can easily configure the device for their use cases, abstracting the complex underlying hardware. This includes GMSL link configuration, video logging, compression, GPIO mapping, bridging and logging.
Lossless video compression
The Capture Module SerDes GMSL2/3 offers a significant advantage for AD/ADAS applications by employing real-time and lossless JPEG compression. This technology reduces storage requirements by up to 50% (depending on the environment) without compromising video quality, and thus enabling efficient data handling and storage. This feature is particularly valuable for AD/ADAS applications that demand large amounts of video data storage.
The Capture Module SerDes GMSL2/3 is ideal for automotive engineers and developers who require logging high-speed camera data when developing and testing their AD/ADAS or infotainment applications.
| Operating temperature | -40 °C to +75 °C |
| Supply voltage | 9 V to 24 V DC (typ. 12 V) |
| Power consumption | 15 Watt (depending on connected SFP Modules) |
| IP protection class | IP 20 |
| Housing dimensions | 240 mm (W), 130 mm (L), 65 mm (H) |
| Weight | 1,5 kilograms (aprox.) |
| Interfaces | 8x GMSL2/3 ports (4x link lines) 2x 10Gbit Ethernet (SFP+) for Logging 2x 1000BASE-T (RJ-45) for Config and Sync 1x Service Port 2x Wake-Up Line |
| Deserializer | Analog Devices MAX96792A |
| Serializer | Analog Devices MAX96793 |
